For bridges and parking decks

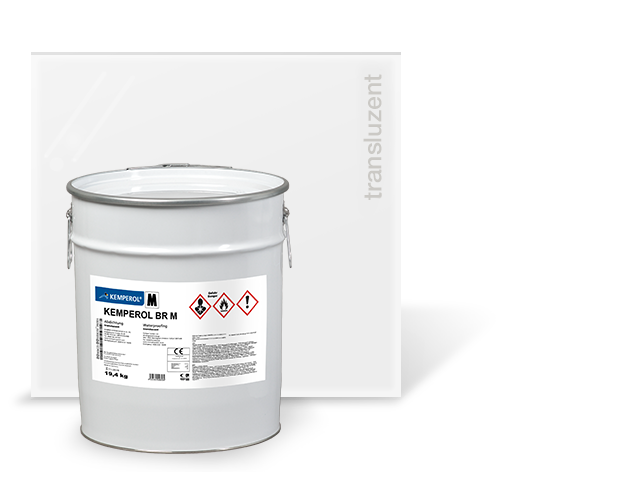

KEMPEROL BR M is a 2-component, fleece-reinforced polyester resin-based (UP) waterproofing system. This tested system has been specially developed for the extreme demands of parking decks and bridges to effectively protect reinforced concrete structures against water and corrosion damage. The material can be used under asphalt, slabs and paving stones or be applied with scattered colored quartz on both concrete and weathered asphalt.

Product benefits of KEMPEROL BR M

Provides short-term heat resistance

The application of mastic asphalt with a temperature of 250°C does not compromise the waterproofing.

Bridges cracks

Bridges cracks with a width of up to 2 mm safely and reliably.

Ideal for concrete surfaces that can be driven and walked on

Specially developed for the extreme demands of parking decks and bridges.

Product information

Application areas
Suitable for concrete surfaces that can be driven and walked on, concrete surfaces at risk of cracking, such as kerbs and bridge barriers, and surfaces that are subject to extremely high mechanical stresses, such as parking decks and bridges. Suitable for joint waterproofing, connections, structural details and surfaces, also under mastic asphalt.

Properties
At +23°C and max. 50% rel. humidity:

  • Workability time approx. 15 minutes
  • Rainproof after approx. 30 minutes
  • Can be walked on after approx. 6 hours
  • Can be driven on after approx. 24 hours
  • Fully cured after approx. 3 days
  • Can receive the next coat after approx. 6 hours
  • With mastic asphalt after 4 to 6 hours (applies to connection areas; for installation on the entire surface after 2 days)
  • Provides short-term heat resistance up to 250°C

Consumption min. 2.8 kg/m² for a layer thickness of 2.0 mm

Standard colours translucent, custom colours on request.

Pack sizes

  • Component M 19.4 kg
  • KEMPEROL CP Catalytic Powder Component C 0.6 kg

Approvals

  • ETA 03/0026 (W3)
Quantity Calculator
qm

Effective calculation is crucial for success.

There are things that make optimised economic performance easier – our quantity calculator is without doubt one of them. It is so easy: Simply select a product or system structure and specify the size of the surface. And you will be told the exact amount required for the job.

Accessories

Whatever your project – KEMPEROL also offers you the supplementary material to make it a success.

KEMPEROL 165 Fleece
KEMPERTEC AC Primer
KEMPERTEC EP-Primer
KEMPERTEC EP5-Primer
KEMPERTEC R-Primer

Telecommunications tower Uelzen
KEMPER SYSTEM sets signals for the future

The telecommunications tower Uelzen is groundbreaking for the state of Lower Saxony in several respects. At 158 meters, the massive steel structure is...

Colonius, Cologne
Tower pulpit in the wind

With its 266-metre height, the Colonius television tower in Cologne is a Cologne landmark that cannot be overlooked. In addition, "der Lange" supplies...

Waterproofing a parking deck in Cologne
A strong team: KEMPEROL plus mastic asphalt

Vehicle traffic, moisture and chloride stress corrosion, extensive temperature fluctuations – multi-storey car parks are exposed to an array of high...

Downloads

Title
KEMPEROL 165 Fleece Safety data sheet
KEMPEROL 165 Fleece Technical data sheet
KEMPEROL BR M Safety data sheet
KEMPEROL BR M Technical data sheet
KEMPEROL CP Catalyst Powder Safety data sheet
KEMPEROL CP Catalyst Powder Technical data sheet

All quantities and times are approximate and without guarantee. For color specifications, absolute RAL match can not be guaranteed.
